Introduction

• Characteristic

  Characteristic

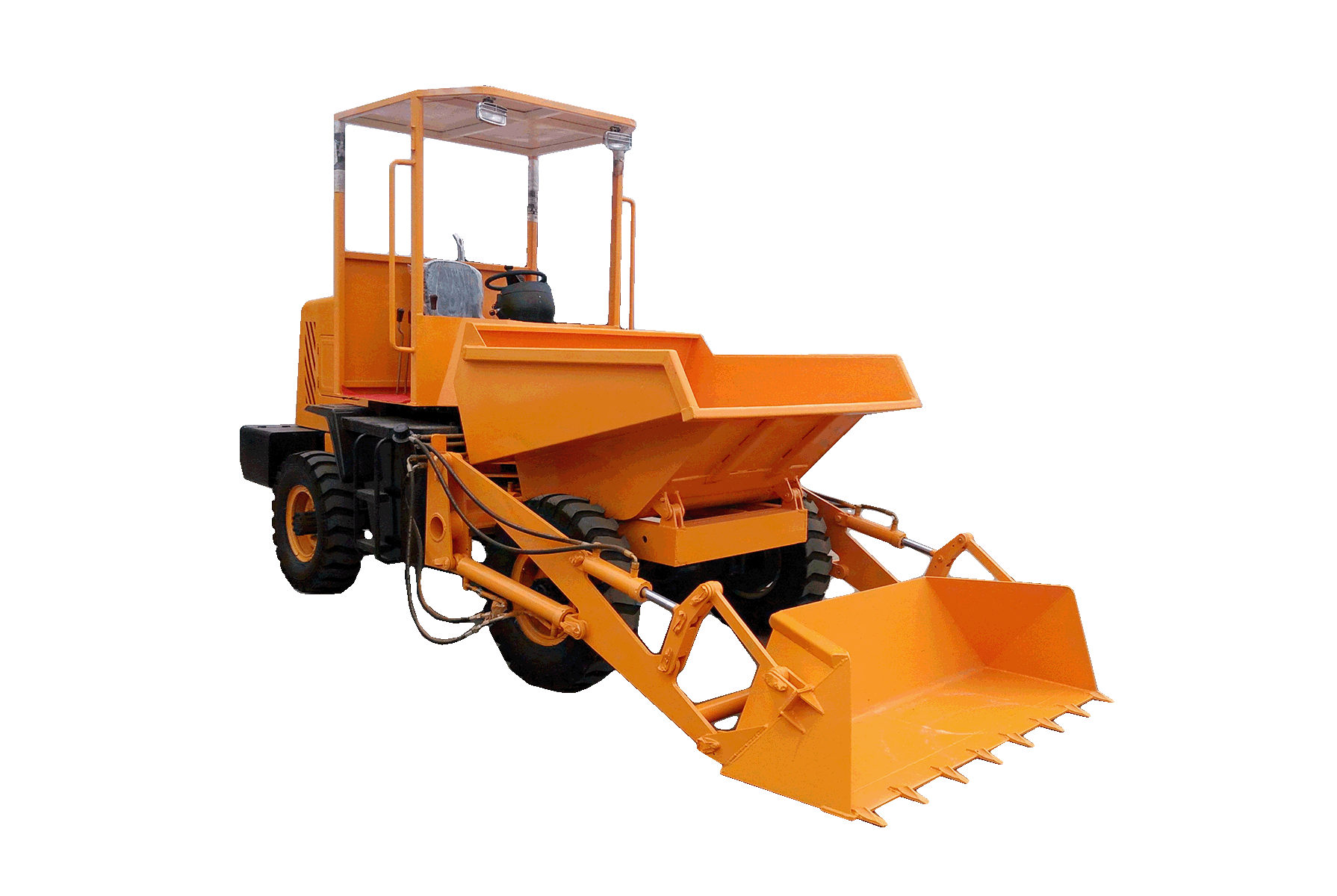

  The  features of this dumper: self loading, dumping
  The four wheel drive car, diesel engine has a rear axle load distribution is reasonable, climbing ability and good stability, after the bridge can swing outside etc., also has the load and moderate capacity, compact and lightweight, flexible and comfortable operation, small turning radius, simple maintenance, requirement of road surface is not high, can use in the narrow space and road bad conditions, and has a hydraulic transmission system, loading and unloading more convenient, more versatile.
  In addition to the above features, the utility model is additionally provided with electric starting, lighting, lighting signals and driving hood, etc., so as to make the operation performance more perfect and the adaptability more extensive.
• Parameter

  Parameter

  翻斗車型號	Model of dumper	FJZ20
  額定裝載量	Rated load（kg）	2000
  斗容積（m3）	Rated bucket capacity（m3）	1
  卸載高度	Dumping height（mm）	480
  最大爬坡度	Max .climbing gradient	21%
  斗寬	Bucket width	1600
  最小轉彎半徑	Min turning radius (mm)	4500
  外形規格	Overall dimension (length *width * high)（mm）	5500*2000*2650
  軸距	Wheel base（mm_)	2312
  輪距	Tread （mm)	1350
  最小離地高度	Minimum ground clearance（mm)	215
  機體重量	The weight of machine（kg)	2600
  發動機	型號Model	2110
  	功率Rate power（kw)	28
  	轉速Rated speed（r/min)	2200
  輪胎型號	Tire model	825-16
  翻轉方式	Tipping system	液壓翻轉Hydraulic tipping hopper
  電啟動	Eclectic starting	Yes



• Construction case

  Construction case

  •

    Construction case
